OEM Laminar Flow Hood Hepa Fan Filter Units FFU For Hospital

Brand Name : Compo

Place of Origin : China

MOQ : 200pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000pcs per day

Packaging Details : PE bags inside, Carton box outside

Product name : FFU Fan Filter Unit

Efficiency : 99.97%(H13) (Customized)

Application : Hospital

Frame : Galvanized,Aluminum

Suitable for : FFU

Contact Now

OEM Laminar Flow Hood Hepa Fan Filter Unit FFU For Hospital Ffu Filter Fan Unit​

Features of FFU(Fan Filter Unit)
1. High-efficiency Filtration: FFUs are equipped with high-quality filters, typically HEPA (High Efficiency Particulate Air) or ULPA (Ultra Low Penetration Air) filters, capable of removing fine particles and contaminants from the air with a high degree of efficiency.
2. Adjustable Airflow: They offer the ability to adjust the airflow rate to meet the specific requirements of different cleanroom environments.
3. Low Noise Operation: Advanced fan designs and noise reduction technologies ensure quiet operation, minimizing disturbance in the workspace.
4. Compact Design: FFUs are usually compact in size, allowing for easy installation and integration into various cleanroom layouts.
5. Durability: Made of high-quality materials, they are designed to withstand long-term use and harsh working conditions.


Specification of FFU(Fan Filter Unit)

Body shape size(W×H×D)mm The filter size(W×H×D)mm Air inlet dimensions(W×H×D)mm The rated air flow m³/h Filter area Let dust(g) Initial resistance surface wind speed 0.5m/s Initial resistance(Pa) Filtration efficiency
320×320×180 282×282×69 300×300 150 2.7 150 ≤130 400 H13
484×484×180 446×446×69 464×464 350 6.7 400 ≤130 400 H13
610×610×180 572×572×69 590×590 600 11.1 650 ≤130 400 H13
630×630×180 587×587×69 610×610 650 11.9 700 ≤130 400 H13
915×610×180 887×572×69 895×590 900 17.1 1000 ≤130 400 H13
1220×610×180 1182×572×69 1200×590 1200 23.1 1400 ≤130 400 H13
1260×630×180 1222×592×69 1240×610 1300 24.7 1500 ≤130 400 H13

Applications of FFU(Fan Filter Unit)
1. Electronics Manufacturing: FFUs are widely used in semiconductor fabrication facilities, PCB (Printed Circuit Board) production, and other electronics manufacturing processes where a clean and particle-free environment is crucial.
2. Pharmaceutical Industry: Cleanrooms in pharmaceutical production, especially for drug formulation and packaging, rely on FFUs to maintain aseptic conditions.
3. Biomedical Research: Laboratories conducting biomedical research and experiments require clean air to ensure the accuracy and reliability of results.
4. Food Processing: In food processing plants, especially for sensitive products, FFUs help maintain a hygienic environment.

All sizes and styles can be customized

Size (WxLxHmm) 575x875x375 575x1175x375 615x1225x375 875x1175x375

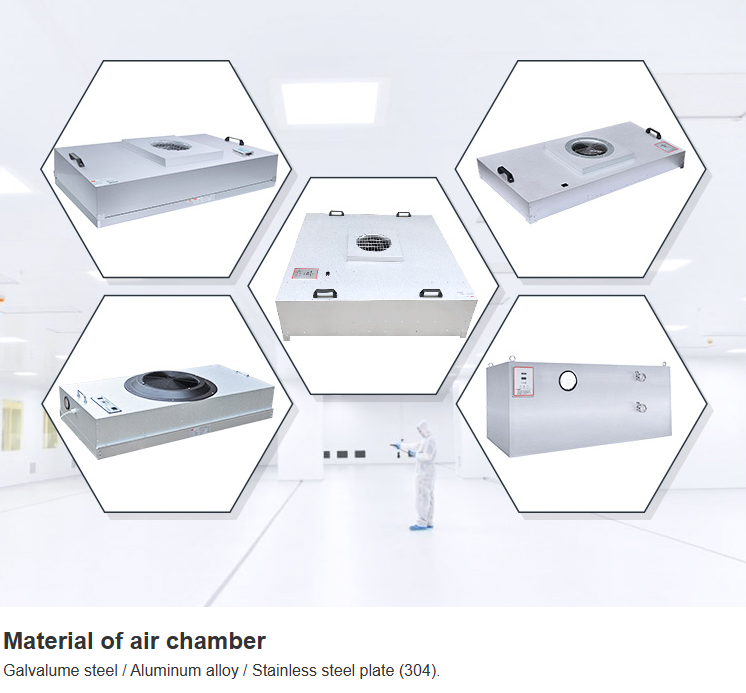

Air chamber material Galvalume / aluminum / stainless steel
Air Flow (m³/h) 800~900 1000~1100 1100~1200 1600~1700
Air velocity (m/s) 0.35~0.55 0.35~0.55 0.35~0.55 0.35~0.55
Total pressure (Pa) 175 185 195 255
Power (W) 85 95 115 235
Weight (kg) 27 37 40 42
Noise dB (1m below the HEPA filter) 55~63
Vibration (mm/s) 0.2~0.7
Power supply 220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz)
Control mode 3 levels adjustable manually or group control by computer
Options DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device
HEPA filter - Size (WxHxDmm) 570x870x69 570x1170x69 610x1220x69 870x1170x69
HEPA filter - Efficiency 99.99% 0.3μm
HEPA filter - Frame High quality anodized aluminum
HEPA filter - Initial pressure drop 110Pa@0.45m/s±15%
HEPA filter - Trait PU foam endless gasket
